Detailed Working Process:
Feed Intake
- Material enters through the top hopper
Initial Engagement
?- Rolls grip material through surface friction
Compression Phase
?- Material is compressed between rotating surfaces
Size Reduction
?- Fracturing occurs along natural material weaknesses
Product Discharge
?- Sized material exits through adjustable gap
Roller Crusher
This controlled compression process produces uniform, cubical particles with minimal fines generation - perfect for various industrial applications.
Need precise size reduction solutions??Consult with our engineers at Huashengming for customized roll crusher configurations.
]]>Core Applications Include:
1.Secondary and tertiary crushing in mining operations
2.Coal preparation and mineral processing
Roller Crusher
3.Aggregate production for construction materials
4.Recycling operations for concrete and demolition waste
Ready to improve your material processing precision??Contact Huashengming Heavy Industry today to explore how our engineered roller crushers can enhance your production efficiency and product quality.
]]>
How does it ensure effective crushing?
The machine uses an intelligent hydraulic system and spring mechanism to adjust the roller gap automatically. This ensures optimal crushing results. Additionally, it provides precise particle size control, delivering uniform final products.
Is it environmentally friendly?
Yes, it is. The spring double roller crusher has a sealed crushing chamber to reduce dust emissions. This design meets modern environmental standards and minimizes pollution in your plant.
What are its main advantages?
The 10-20 TPH double roller crusher offers five key benefits:
- Cost-effectiveness: Its affordable price suits small plants with limited budgets.
- High efficiency and energy savings: Optimized motors and hydraulic systems reduce power consumption.
- Simple maintenance: High-strength materials for rollers and liners extend their lifespan and lower replacement frequency.
- Eco-friendliness: The sealed design limits dust and noise pollution.
- Versatile adaptability: It handles various medium-hard and brittle materials, increasing your investment returns.
Why is it ideal for small-scale sand plants?
This crusher delivers consistent performance and reliable results. It can process river pebbles and other medium-hard materials with ease. Its efficiency boosts production while maintaining high product quality.The material enters between the rollers from the feed port and crushes the river pebbles through extrusion. There is a certain gap between the two rollers. The larger the gap between the two rollers, the larger the material discharge particle size. Under the action of the compression spring, the smaller the gap between the two rollers, the smaller the material discharge particle size. By changing the adjustment gap, the material discharge particle size can be controlled.
Why choose Huashengming's small spring double roller crusher?
Huashengming manufactures its crushers using durable, wear-resistant materials. These machines include advanced hydraulic and spring systems that automatically adjust to optimize crushing. With strict control over particle size, the crusher produces top-quality sand for construction and industrial uses.
In conclusion, Huashengming’s 10-20 TPH double roller crusher is the ideal choice for small sand plants seeking reliability, efficiency, and eco-friendliness.
RELATED PRODUCTION
First, determine your required production capacity. For large-scale projects, select a high-capacity machine to complete sand production efficiently. Smaller projects can use lower-capacity machines to save costs.
Next, consider machine adjustability. Many limestone sand machines, especially double roller crushers, allow you to adjust the particle size. This control lets you produce sand with the desired fineness to meet various engineering requirements. Choosing a machine with adjustable output settings provides more flexibility for your projects.
Also, evaluate maintenance needs. Opting for a machine that is easy to maintain reduces downtime and repair costs. Regular checks and cleaning of rollers and screens are essential to keep the machine running efficiently. Additionally, pay attention to energy efficiency and environmental impact. Compared to traditional crushers, double roller crushers are more eco-friendly as they reduce the demand for natural sand, lowering the environmental burden.
Finally, choose a reputable manufacturer like Huashengming Heavy Industry. They offer high-quality double roller crushers along with technical support and after-sales service, ensuring long-term, reliable performance.
When choosing a limestone sand machine, consider the specific advantages of a double roller crusher for producing high-quality sand efficiently. Double roller crushers are known for their durability and precise control over output size, making them ideal for various limestone sand applications. Their design allows for high crushing efficiency and a uniform particle size, which is especially important for construction projects that require consistent material quality.
Additionally, double roller crushers have a relatively simple maintenance process, requiring only routine inspections and minimal downtime. This reliability helps keep operations running smoothly without costly delays. Moreover, these machines are energy-efficient, which can significantly reduce operational costs over time. By using a double roller crusher, you not only enhance productivity but also contribute to environmental sustainability by reducing the reliance on natural sand sources.
For reliable performance and support, choosing a trusted manufacturer like Huashengming Heavy Industry ensures that your machine operates efficiently for years to come.
Lead ore crusher
1. Working Principle
The Huashengming double-roll crusher crushes materials by applying continuous compressive and shear forces through two counter-rotating rolls. When lead ore falls from the top feed opening between the rolls, it enters the crushing chamber where it is subjected to high-pressure compression and shear forces, resulting in fragmentation. This relatively “gentle” crushing method offers key advantages for lead ore processing.
2. Advantages
Precise particle size control effectively reduces over-crushing:
Lead-zinc ores are predominantly sulfide minerals, where particle size significantly impacts mineral recovery rates. Excessive impact crushing generates substantial fines, leading to metal loss. The slow compression of the double-roll crusher effectively minimizes the production of excessively fine particles, ensuring uniform particle size distribution in the final product. This is crucial for subsequent flotation processes.
Specialized Wear-Resistant and Corrosion-Resistant Design:
Addressing the corrosive nature of sulfur-containing lead-zinc ores, Huashengming's double-roll crushers feature roll surfaces made of high-chromium alloy (hardness up to HRC 60-62) with anti-corrosion coating. This design extends roll surface lifespan to 6-8 months under harsh operating conditions.
Energy Efficiency and Overload Protection:
The equipment operates with low energy consumption per unit. Its hydraulic or spring overload protection system automatically retracts the rollers upon encountering non-crushable foreign objects (such as iron tools like drill bits). After the foreign object is expelled, the system automatically resets, effectively safeguarding the machine's core components from damage.
lithium ore and chromite ore
1.Working Principle

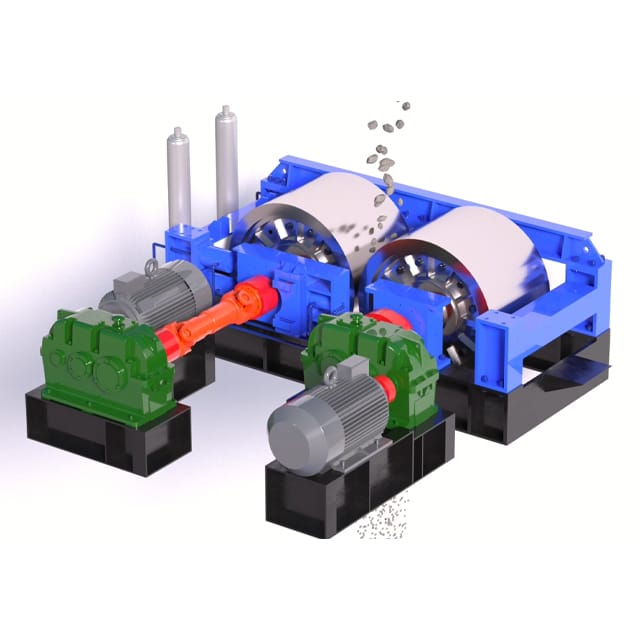

The Huashengming double-roll crusher crushes materials by applying continuous compressive and shear forces through two counter-rotating rolls. The motor drives the fixed roll and movable roll sections via a reducer and V-belt, respectively. Crushable materials enter between the rolls through the feed inlet. As the rolls rotate inward in sync, the materials undergo compression and grinding to achieve crushing.
2. Advantages
Precise and Controllable Output Particle Size
By adjusting the gap between the two rollers, the crushing particle size can be freely modified to meet diverse process requirements. This slow compression method effectively minimizes the production of excessively fine powder, resulting in a more uniform output particle size.
Wear-Resistant and Durable
Roll shells can be manufactured using high-chromium alloy composite casting, achieving high hardness (up to HRC 62+) and exceptional wear resistance, significantly extending equipment lifespan. Roll sleeves on certain models boast an average service life exceeding 2 years.
Intelligent Control and Protection
Premium models (e.g., HSM Series Hydraulic Double-Roll Sand Maker) feature standard PLC intelligent control systems supporting remote monitoring and parameter adjustment. Equipped with a hydraulic automatic retreat system, the equipment automatically protects against damage when encountering non-crushable foreign objects (e.g., metal chunks).
High Efficiency and Energy Savings
Designs such as dual-motor synchronous drive help reduce energy consumption, achieving over 20% greater energy efficiency compared to traditional equipment.
。
]]>
Lithium Ore And Chrome Ore Crusher
1. Working Principle
The double-roll crusher primarily crushes materials by squeezing and grinding them between two counter-rotating rolls. When lithium ore enters the crushing chamber through the top feed opening between the rolls, it undergoes high-pressure compression and shear forces to achieve fragmentation. This relatively “gentle” crushing method offers significant advantages in lithium battery material processing.
2.Advantages
Eliminates metal contamination, ensuring high purity of battery materials
This is the most critical advantage of double-roll crushers when processing lithium ore. Lithium battery cathode materials impose extremely stringent requirements on metal impurities such as iron (Fe) and chromium (Cr). Traditional crushers using metal rollers like manganese steel inevitably introduce trace metal contamination. Double-roll crushers, however, can employ ceramic or zirconia rollers to ensure no metallic impurities enter during crushing. Case studies demonstrate that using ceramic double-roll crushers can reduce iron content in cathode materials from over 100 ppm to below 5 ppm.
Precise and Controllable Particle Size to Meet Specific Process Requirements
The discharge particle size can be easily controlled by precisely adjusting the gap between the two rollers via a hydraulic system or mechanical device. This is crucial for subsequent mineral processing or chemical reactions, as uniform particle size distribution enhances reaction efficiency and product consistency.
Energy-efficient and environmentally friendly production
Featuring a low-speed, high-torque design, the double-roll crusher consumes less energy than traditional ball mills. Additionally, the equipment typically employs a fully sealed structure with dust extraction interfaces, effectively preventing dust leakage to safeguard the working environment and meet environmental standards.
stone crusher
Manganese Crusher
1.Working Principle
The working principle of the double-roll crusher is highly intuitive: two rolls rotate toward each other driven by an electric motor. Material enters the V-shaped crushing chamber formed between the rolls from the top, where it is continuously crushed by compressive and shearing forces. By adjusting the gap between the rolls (via a wedge device or shim adjustment), the maximum particle size of the product can be precisely controlled to meet diverse production requirements.
2.Advantages
Excellent particle size control with low over-grinding rate:
Slow compression and shearing forces enable more uniform material fragmentation while significantly reducing the production of excessively fine powder. This is crucial for subsequent mineral processing stages, as uniform feed particle size effectively enhances ore recovery rates.
Energy-Efficient and High-Performance:
Integrating double-roll crushers into grinding systems maximizes the production capacity of grinding equipment, typically boosting output by 30%-40% while reducing overall energy consumption by 20%-30%. Data from some manufacturers indicates their equipment consumes approximately 20% less electricity per ton of ore compared to traditional equipment.
Simple Structure and Easy Maintenance:
The double-roll crusher primarily consists of rollers, roller support bearings, compression and adjustment mechanisms, and drive units. Its compact design facilitates straightforward maintenance. Models featuring specialized roller surfaces (e.g., high-chromium alloy rollers) can achieve roller surface lifespans exceeding one year.
Sensitive overload protection:
When non-crushable foreign objects (e.g., iron pieces) enter the crushing chamber, the rollers automatically retract via hydraulic cylinders or springs to widen the gap. After the foreign object is discharged, the rollers automatically reset, effectively protecting the machine.
particularly in scenarios where product shape is critical and minimizing fines generation is a priority.

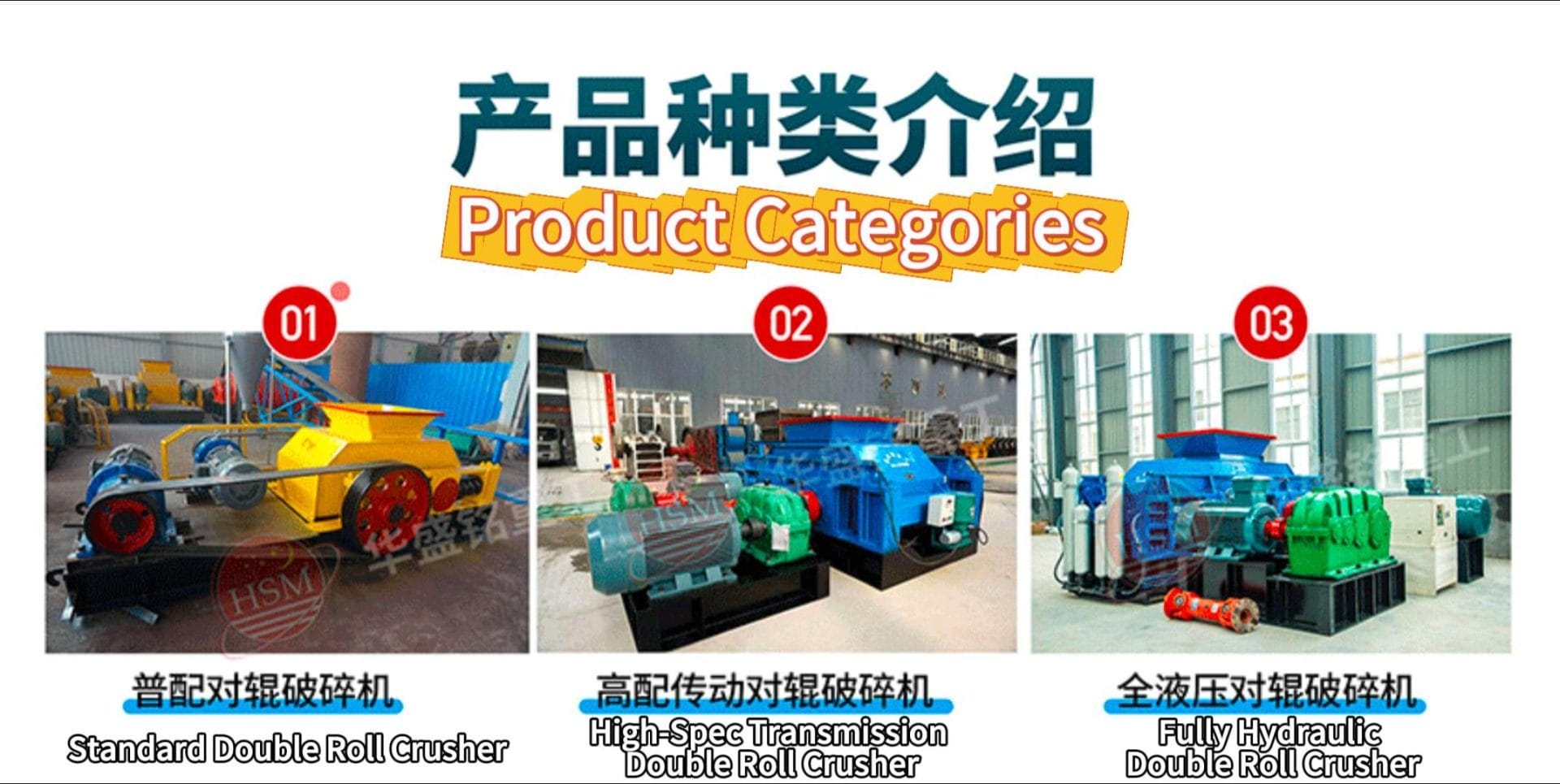

mineralized river bed sand gravel crusher
1.. What is “mineralized riverbed gravel”?
Mineralized riverbed gravel typically refers to:
A mixture of sand and gravel within natural alluvial deposits
Containing heavy minerals such as native gold, platinum group metals, cassiterite, ilmenite, and zircon
Particle size: 0–150mm, commonly 5–60mm pebbles + sand
Physical properties: High hardness (predominantly quartz, flint, granite pebbles), highly abrasive, often containing silt and water
2.Advantages of Double Roll Crushers (Why Are They Suitable?)
Excellent Particle Shape: Employing the principle of compression crushing, double roll crushers produce material particles predominantly in a cubic shape with low content of needle and flake particles. This is highly advantageous for applications requiring well-shaped aggregates, such as concrete aggregates.
Minimal Over-Grinding: Compared to hammer crushers or impact crushers, double roll crushers generate a lower proportion of powder (stone dust) during crushing. This better preserves the desired particle size of sand and gravel, increasing the yield of finished products.
Simple Structure, Easy Maintenance: The mechanical structure is relatively straightforward, making operation and maintenance relatively simple with fewer potential failure points.
Good Adaptability to Moisture- and Mud-Containing Materials: Double-roll crushers demonstrate superior adaptability to materials with slightly higher moisture and clay content (commonly found in riverbed gravel) compared to cone crushers, exhibiting reduced susceptibility to blockages. However, pre-treatment remains necessary for highly viscous materials.
Controllable particle size adjustment:
Output particle size can be conveniently controlled by adjusting the gap between the two rolls, offering excellent flexibility.
]]>
