Product description

Four roll crusher is a kind of medium and fine crushing machine with simple structure, reliable performance. It is mainly used in medium hardness materials such as limestone, clay shale, chalk, brick, slag, clinker, feldspar, coke etc. It applies to cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.

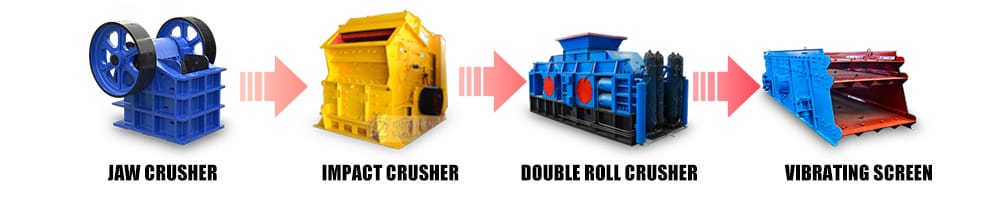

Sand Production Application

In sand production lines, the double-roll crusher functions as a sand-making machine, offering advantages such as no wear parts, low maintenance costs, adjustable sand particle size, high yield rate, and excellent sand particle shape. It is widely used in the sand-making industry.

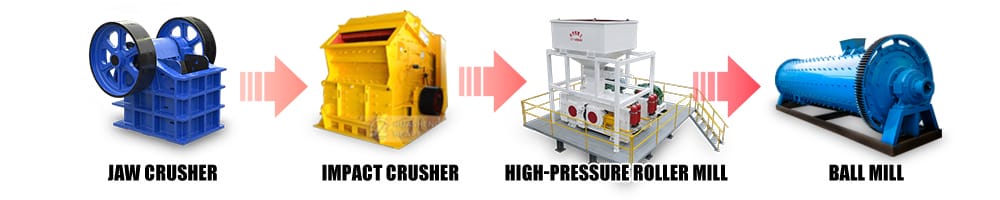

Mineral Processing Crushing Applications

In the mineral processing industry, double-roll crushers or high-pressure roller mills are employed for fine crushing operations. Positioned upstream of ball mills, they can reduce 2-3 cm ore particles to less than 1 mm, significantly enhancing the operational efficiency of mineral processing ball mills and boosting overall production productivity.

The four-toothed roller crusher uses four high-strength and wear-resistant rollers. The upper and lower rollers can choose toothed rollers or smooth rollers according to needs. The high extrusion force and shearing force generated by relative rotation are used to crush materials. After the material enters the gap between the upper two toothed rollers (V-shaped crushing cavity), it is squeezed and sheared by the relative rotation of the two toothed rollers. After the material is squeezed and sheared (coarse crushing), it enters the lower two relatively rotating rollers again. , and then squeezed, sheared, and ground (finely broken) by the lower two rollers into the required particle size and sent out by the conveying equipment.

Technical parameters

•

•
•
•
