Applicable materials:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.
Application scope:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.
Customized Crushing Solution for Your Raw Materials

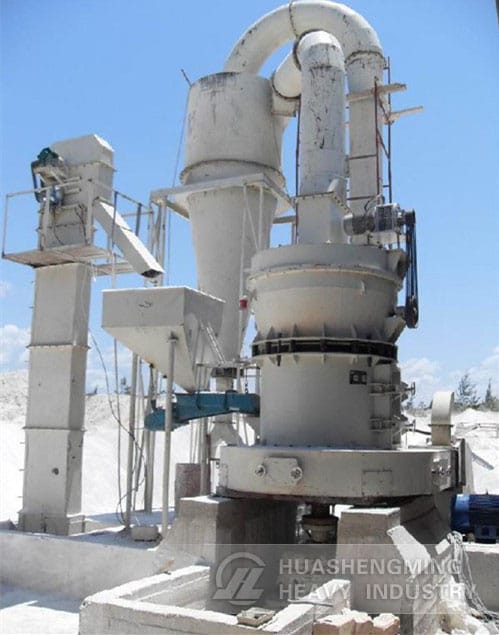

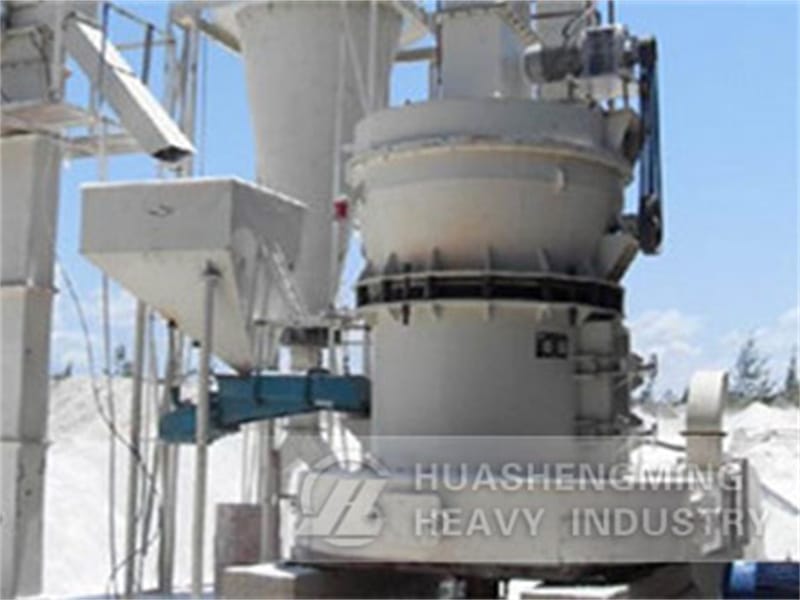

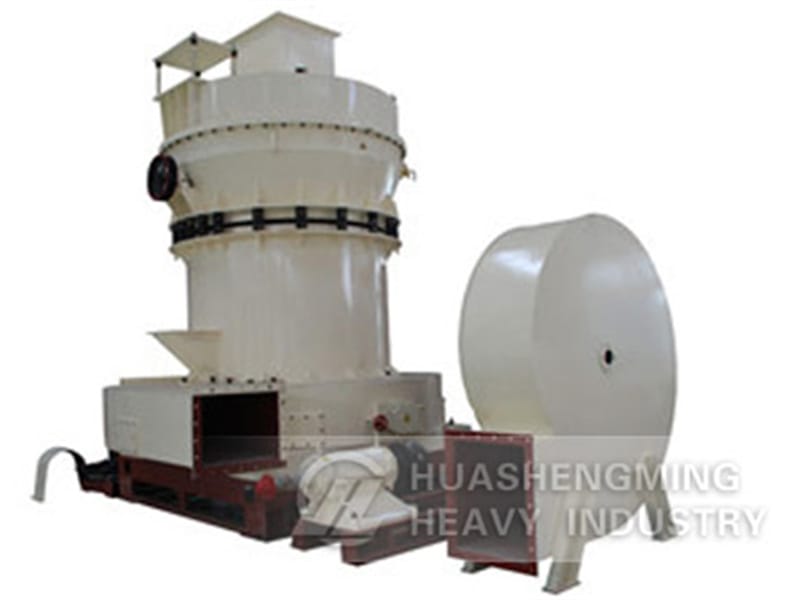

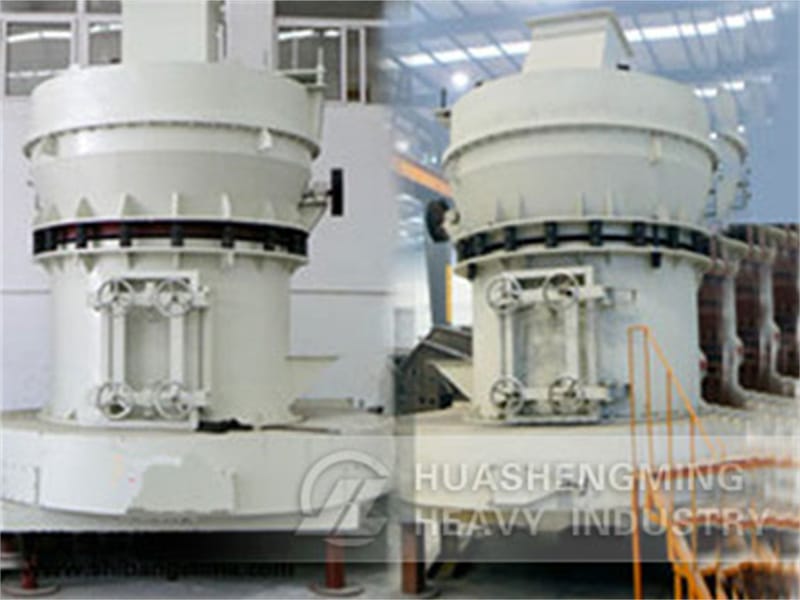

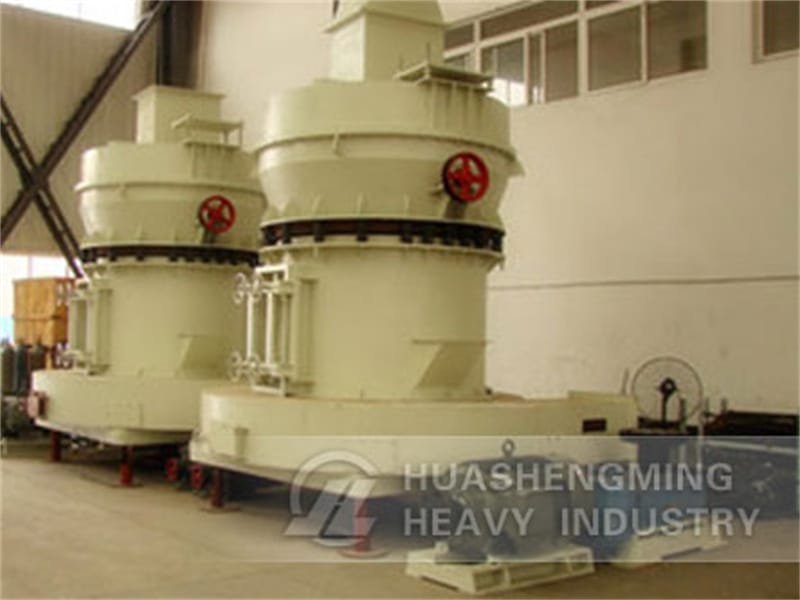

chat onlineLarge materials are crushed by Jaw crusher to the needed sizes firstly, then the materials are elevated to storage hopper by bucket elevator, third, the materials are fed into the grinding chamber for grinding by vibrating feeder equably and continuously. The powder after grinding goes upwards together with the airflow, after separating by powder separator, those which can meet the fineness requirement enters into the cyclone powder collector through pipe together with the airflow, and then discharged from the discharge valve as final products. The airflow is sucked into centrifugal blower through wind recycling pipe at the upper part of cyclone powder collector. The mainframe is driven by the speed reducer through the central axis in the mill. The quincunx stand connected with the upper part of central axis, at the quincunx stand, rollers are set and by which the vibrating pivot formed. Below the quincunx stand and rollers there is shovel system. Materials are fed into the space between rollers and shovels when they are turning, and then be grinded by the pressure produced when rollers are turning, thus powder is made.
| Model Specification Items |
TGM100 | TGM130 | TGM160 | TGM190 | |
| Max?feeding?size(mm) | 25 | 30 | 35 | 40 | |
| Final?size(mm) | 1.6-0.045 the?fineness?can reach?0.038 |
1.6-0.045 the?fineness?can reach?0.038 |
1.6-0.045 the?fineness?can reach?0.038 |
1.6-0.045 the?fineness?can reach?0.038 |
|
| speed?for?main frame(r/min) |
130 | 103 | 82 | 66 | |
| Roller | quantity(Piece) | 4 | 5 | 6 | 6 |
| diameter(mm) | Φ310 | Φ410 | Φ440 | Φ540 | |
| height(mm) | 170 | 210 | 270 | 280 | |
| Ring | diameter?(mm) | Φ1050 | Φ1400 | Φ1750 | Φ2050 |
| height(mm) | 170 | 210 | 270 | 280 | |
| Power (KW) |
motor?for?main frame(KW) |
37 | 75 | 132 | 200 |
| motor?for?blower (KW) |
37 | 75 | 132 | 200 | |
| motor?for eparator (KW) |
5.5 | 7.5 | 18.5 | 18.5 | |
| Capacity(t/h) | 3-8 | 6-15 | 9-22 | 18-36 | |
| Overall?dimension?(mm) | 7325×7521×8200 | 8802×7505×9695 | 13025×7169×8355 | 16000×9400×9300 | |
| Weight(t) | 16 | 26.1 | 38 | 50 | |
