Product description

What is Flat Roller Crusher

The Flat Roller Crusher is suitable for coarse and medium crushing of brittle blocky materials in industries such as cement, chemical industry, power, mining, metallurgy, building materials, refractory materials, and coal mines. It has a large feed particle size and adjustable discharge particle size, and can crush materials with compressive strength ≤160MPa.

The Flat Roller Crusher crushes the material by falling through the feed opening into the space between the two rollers for extrusion crushing, and the finished material falls naturally. When encountering hard or unbreakable materials, the rollers of the roller crusher can automatically retreat under the action of the hydraulic cylinder or spring, increasing the roller gap, allowing the hard or unbreakable materials to fall, thereby protecting the machine from damage. The two rollers rotating in opposite directions have a certain gap, and by changing the gap, the maximum discharge particle size of the product can be controlled. The double-roller crusher uses a pair of opposite rotating round rollers, while the four-roller crusher uses two pairs of opposite rotating round rollers for crushing operations.

Reasons for?choosing?us

1. Compared with hammer sand making machine, stone roller crusher does not need to replace wearing parts.

2. The finished product features pretty shape, well gradation, low over-crushing rate and high output.

3. Yellowish brown stone roller crusher is superior to hammer crusher and impact crusher, and the average service life ofitsroller sleeve is more than 2 years.

4. Roller skin contains high content of chromium, manganese and other rare metal materials. Adjustable discharge size.

Machine-testing Video

It is suitable for crushing sticky stone?material?into medium size. Roller?crusher utilizes two rollers rotating in opposite direction to crush the material, which consists of motor, bracket, fixed rollers, movable rollers and springs.?Most of its roller surfaces are glossy, and the bearings of the movable rollers can be moved along the?machine?frame and held against it by springs. Therefore, When a particularly hard object accidentally drops into the machine, the bearing can be moved out of the way to expel it.?Furthermore, before the machine runs, the gap between the two rolls should be adjusted with shims to ensure the crushing size.

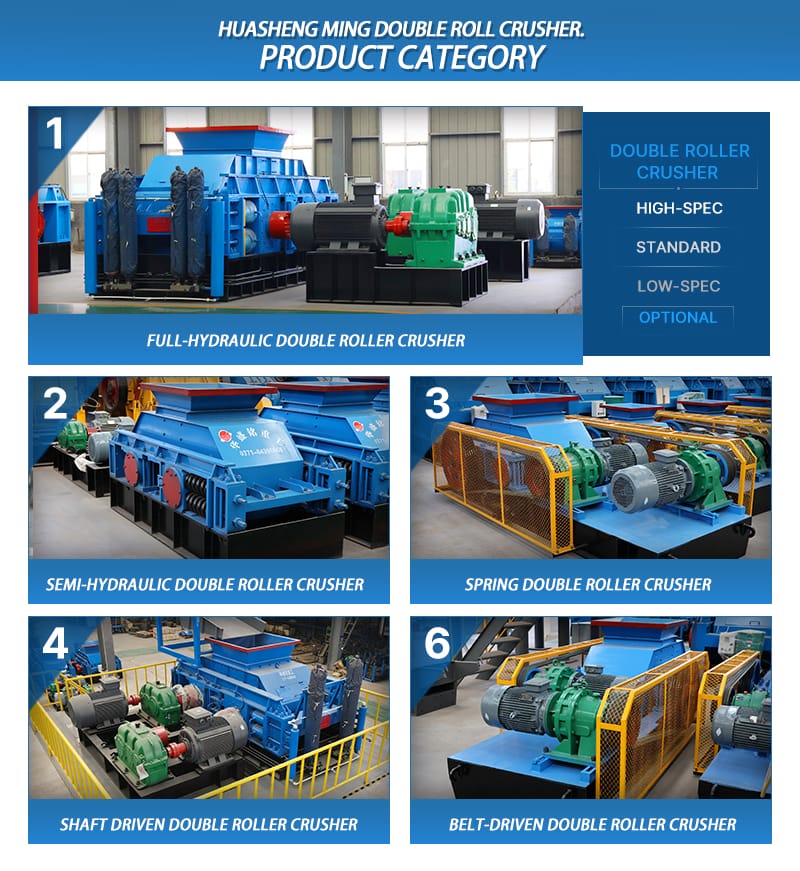

Product category

Roller Mill Crusher is divided into several kinds: Spring fine crushing sand making machine, cardan shaft drive roller crusher, hydraulic fine crushing sand making machine.You can choose the machine according to your budget and the facts.

Product Model

The crusher is classified into small, medium, and large models:

1. Production capacity: 2-12 tph

Small stone roller crusher: 250×250，400×250，400×400，610×400

2. Production capacity: 20-50 tph

Medium stone roller crusher: 750×500，800×600，800×800，1000×800

3. Production capacity: 50-400 tph

Large stone roller crusher: 1200×800，1200×1000，1500×800，1500×1000，1500×1200，1800×1200，2000×1000 or larger.

HSM machines?features different configurations. The sales manager can recommend the proper product to the customers?according?to their facts.

working principle

The double roll crusher uses two independently driven rollers that rotate in opposite directions, generating extrusion and shearing forces to crush materials. Feed material enters through the inlet, is crushed by the rollers, and discharged naturally. If unbreakable or oversized materials are encountered, the hydraulic cylinders or springs automatically retract the rollers to widen the gap, allowing the material to fall through safely. The discharge size is adjusted by controlling the hydraulic or spring pressure.
