Applicable materials:Non-ferrous and ferrous metals (copper, zinc, lead, nickel, gold, manganese, titanic iron ore, apatite, etc), non-metals (fluorite and talc) etc.
Application scope:Non-ferrous and ferrous metals (copper, zinc, lead, nickel, gold, manganese, titanic iron ore, apatite, etc), non-metals (fluorite and talc) etc.

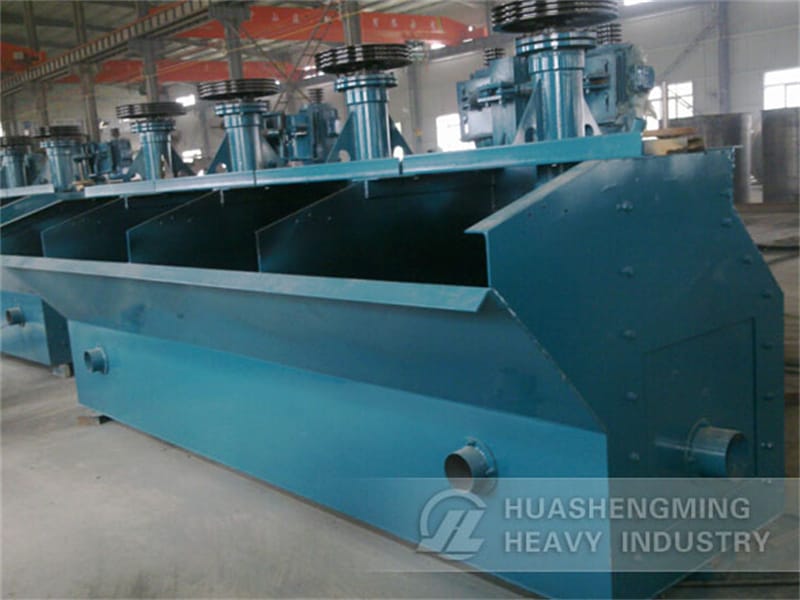

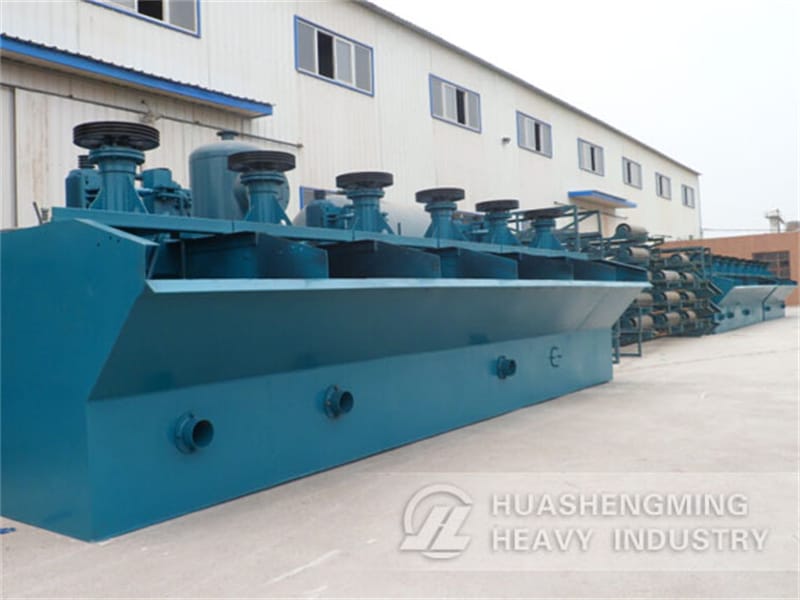

Flotation Machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
Customized Crushing Solution for Your Raw Materials

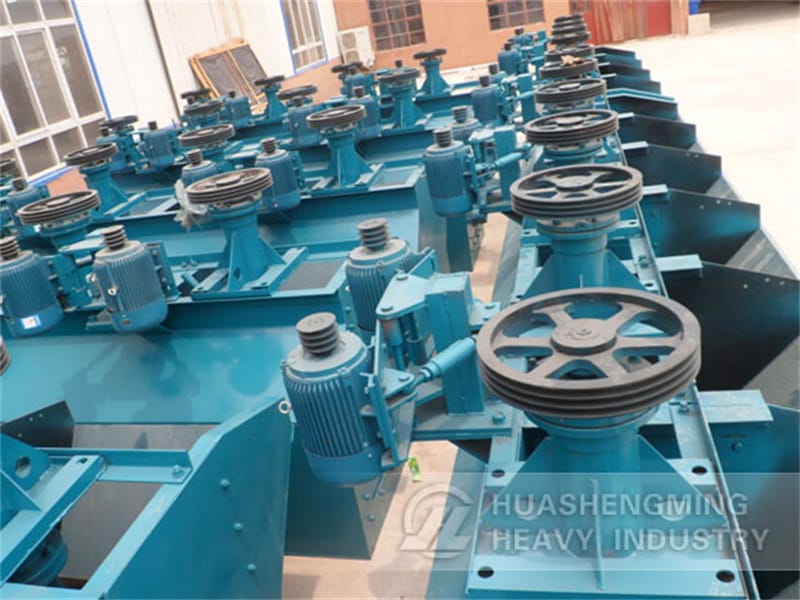

chat onlineWhen flotation machine or flotation separator works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low-pressure air sent by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the remixing with air. The remaining slurry flows to the next trough until it becomes residue.
SF Series
| Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | SF8 | |
| Trough capacity(m3) |
0.37 | 0.7 | 1.2 | 2.8 | 4 | 8 | |
| Impeller diameter(mm) |
300 | 350 | 450 | 550 | 650 | T60 | |
| Production capacity?(m3/min) |
0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | 4-8 | |
| Impeller?rotation speed?(r/min) |
352 | 400 | 312 | 268 | 238 | 191 | |
| Motor | Model | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 | Y250M-8 |
| Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | Y100L-6 | ||
| Power (kw) |
1.5 | 3 | 5.5 | 11 | 15 | 30 | |
| 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | ||
| Dimensions (mm) |
700×700 ×750 |
900×820 ×950 |
1100×1100 ×1100 |
1700×1600 ×1150 |
1850×2050 ×1200 |
2200×2900 ×1400 |
|
| Single?trough weight(kg) |
468 | 600 | 1373 | 2338 | 2660 | 4486 | |
BF Series
| Model | Trough cubage (m3) |
Inside?dimensions (L×W×H) (m) |
Air?suction amount (m3/m2·min) |
Power (kw) |
Motor model |
Processing capacity (m3/min) |
Single?trough weight (kg) |
| BF-0.37 | 0.37 | 0.74×0.74×0.75 | 0.9-1.05 | 1.5 | Y90L-4 | 0.2-0.4 | 470 |
| BF-0.65 | 0.65 | 0.85×0.95×0.9 | 0.9-1.10 | 3.0 | Y132S-6 | 0.3-0.7 | 932 |
| BF-1.2 | 1.2 | 1.05×1.15×1.10 | 1.0-1.10 | 5.5 4.0 |
Y132M2-6 Y132M1-6 |
0.6-1.2 | 1370 |
| BF-2.0 | 2.0 | 1.40×1.45×1.12 | 1.0-1.10 | 7.5 | Y160M-6 | 1.0-2.0 | 1750 |
| BF-2.8 | 2.8 | 1.65×1.65×1.15 | 0.9-1.10 | 11 | Y180L-8 | 1.4-3.0 | 2130 |
| BF-4.0 | 4.0 | 1.9×2.0×1.2 | 0.9-1.10 | 15 | Y200L-8 | 2-4 | 2585 |
| BF-6.0 | 6.0 | 2.2×2.35×1.3 | 0.9-1.10 | 18.5 | Y225S-8 | 3-6 | 3300 |
| BF-8.0 | 8.0 | 2.25×2.85×1.4 | 0.9-1.10 | 22 30 |
Y225M-8 Y250M-8 |
4-8 | 4130 |
| BF-10 | 10 | 2.25×2.85×1.7 | 0.9-1.10 | 22 30 |
Y225M-8 Y250M-8 |
5-10 | 4660 |
| BF-16 | 16 | 2.85×3.8×1.7 | 0.9-1.10 | 37 45 |
Y280S-8 Y280M-8 |
8-16 | 8320 |
| BF-20 | 20 | 2.85×3.8×2.0 | 0.9-1.10 | 37 45 |
Y280S-8 Y280M-8 |
10-20 | 8670 |
| BF-24 | 24 | 3.15×4.15×2.0 | 0.9-1.10 | 45 | Y280M-8 | 12-24 | 8970 |
