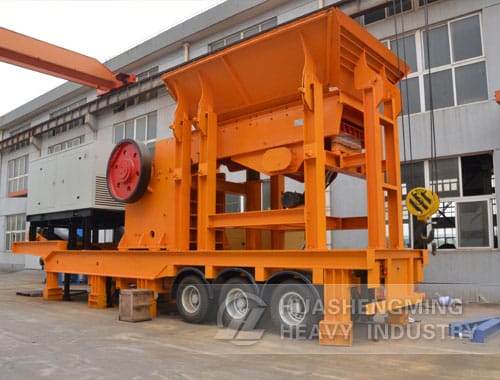

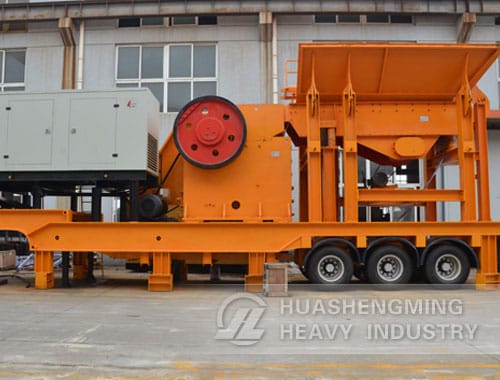

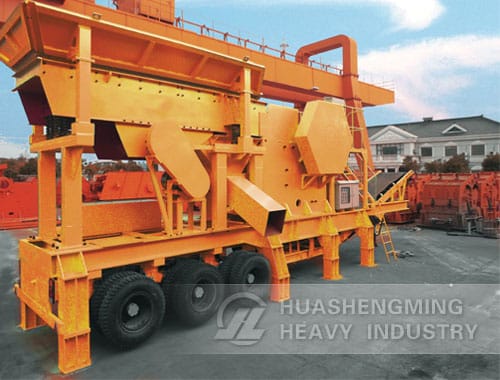

Mobile Jaw Crusher

Product description

Mobile Jaw crusher plant is a latest rock crushing equipment, mainly used in the fields of metallurgy, chemistry, construction materials, hydroelectric power and so on. To process materials that have to be moved, especially materials with high liquidity, such as high way, railway, hydroelectric subjects. Users can apply various allocation according to different materials of different type, scale and requirement of ready made materials. The mobile jaw crushing plant will greatly expand the working scope of coarse crushing.

Structures:

All parts of the mobile jaw crushing plant are fully vehicle-mounted including: solid frame, jaw crusher, feeder, vibrating screen, belt conveyor, motors and control boxes etc.

suitable for more than 200 types hard materials

Small-Scale Gold Ore Crushing Line
Granite sand making
Molybdenum ore beneficiation
Limestone sand making

Sand Production Application

In sand production lines, the double-roll crusher functions as a sand-making machine, offering advantages such as no wear parts, low maintenance costs, adjustable sand particle size, high yield rate, and excellent sand particle shape. It is widely used in the sand-making industry.

Mineral Processing Crushing Applications

In the mineral processing industry, double-roll crushers or high-pressure roller mills are employed for fine crushing operations. Positioned upstream of ball mills, they can reduce 2-3 cm ore particles to less than 1 mm, significantly enhancing the operational efficiency of mineral processing ball mills and boosting overall production productivity.

Sand Production Application
Mineral Processing Crushing Applications

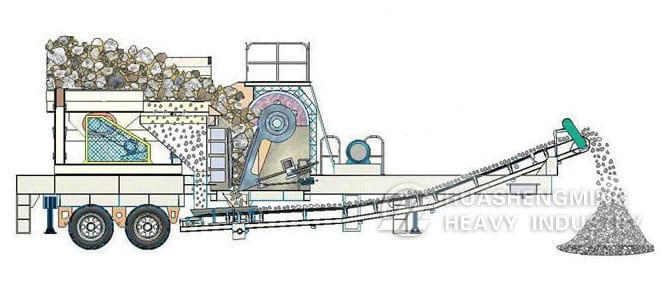

1. Through the feeder, materials evenly delivered to the crusher.

2. After primary crushing of jaw crusher, a closed system is formed by vibrating screen. Final is discharged by belt conveyor , which is continuous crushing operations.

3. Jaw mobile crusher can remove vibrating screen to realize primary crushing of raw material directly according to the actual production. It can be used with other broken equipment which is easy and flexible to operate.

Technical parameters

Model?Technical?data	PP600	PP750	PP900	PP1060	PP1200
Transportation?Length?(mm) (If?there?is?an?diesel?generator)	8600	9800	11000	13000	14000
	10000	11600	12000	14000	15500
Transportation?Width?(mm)	2450	2450	2450	2450	3000
Transportation?Height?(mm)	3800	3500	3600	4500	4800
Maximum?Length?(mm)	12000	13300	13200	15000	17000
Maximum?Width?(mm)	2800	2900	2900	2900	3100
Maximum?Height?(mm)	3800	4100	4600	5800	5800
Weight?(T)	26	32	41	55	81
Tire?Configuration	Uniaxial	Dualaxial	Triaxial	Triaxial	Quadrqxial
Jaw?crusher	PE400×600	PE500×750	PE600×900	PE750×1060	PE900×1200
The?maximum?Feeding?size (mm)	350	425	480	630	750
Discharge?opening?size(mm)	40-100	50-100	65-160	80-140	95-165
Capacity?(T/h)	15-60	50-100	60-130	100-250	160-380
Vibrating?Feeder	GZD850×3000	GZD960×3800	GZD960×3800	GZD1100×4200	GZD1300×4900
Belt?conveyor	B650×7M	B650×7.5M	B800×8M	B1000×9M	B1200×11M
