Applicable materials:Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanic iron and coal etc.
Application scope:Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanic iron and coal etc.
6-S Shaking Tables not only widely applied on separating Gold, Tungsten, Tin, Manganese, Iron, Titanium, Zircon, Tantalum, Barium, Chrome, Lead, Zinc, Mercury, Copper, Aluminum ,and other rare metals and the noble metal ore, also applied on sorting coal.When dealing with the metal ore, the shaker effective recycling granularity scope is 2-0.037 millimeters.
Customized Crushing Solution for Your Raw Materials

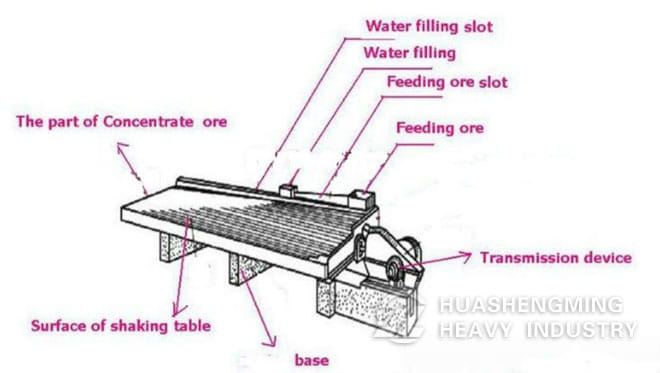

chat onlineShaking Table consists of head motion, decks, and frame, feed and water box. When shaking table starts work, the ore grains laminate surface according to the proportion and granularity, and make the longitudinal motion and transversal motion along the bed surface.
| Model | coarse?sand | fine?sand | slime?(groove) | fine?mud |
| ore?feeding?size(mm) | 2-0.5 | 0.5-0.074 | 0.07-0.019 | 0.0037-0.019 |
| feeding?quantity (tinstone)?(t/d) |
20-35 | 10-20 | 3-10 | 5-15 |
| bed?size(mm) | 4395×1825 | 4395×1825 | 4395×1825 | 4395×1825 |
| bed?dimension (L×W)(m2) |
7.4 | 7.4 | 7.4 | 7.4 |
| travel(mm) | 16-22 | 11-16 | 8-11 | 5-7 |
| frequency?of?stroke (min-1) |
270-290 | 290-320 | 320-360 | 480-520 |
| bed?transverse?slope(°) | 2.5-4.5 | 1.5-3.5 | 1-2 | 1-1.15 |
| Power(kw) | 1.1 | 1.1 | 1.1 | 1.1 |
| Dimension (L×W×H)mm |
5446×1825×1212 | 5446×1825×1227 | 5446×1825×1203 | 5446×2338×1203 |
| Weight(kg) | 1015 | 1030 | 1065 | 1065 |
